Every square metre of your plot counts, and a ramp can cost you a room’s worth of space. EME Elevators designs, supplies, and installs car elevators for villas, sky garage towers, and commercial parking across all seven emirates. Tell us your building and we’ll size the right lift for it.
Get a Free Obligation Quote
A car elevator (also called a vehicle elevator or automobile elevator) moves a vehicle vertically between floors instead of a ramp. It’s built the same way a passenger elevator is, but the cabin, doors, and load rating are sized for a car instead of a person.
You’ll find them in villas, underground parking garages, car dealerships, apartment towers, office buildings, hotels, and multi-level commercial parking structures. Luxury sky garage towers take it a step further, letting residents drive straight into their own private elevator and park next to their unit.

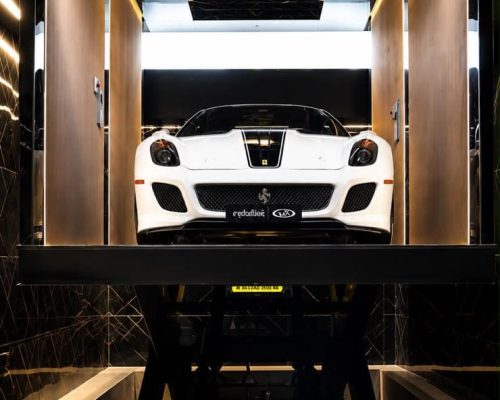

A hydraulic power unit drives a piston to raise and lower the platform. Column-type and scissor-type lifts fall in this category. They suit low-rise buildings like villas and underground garages, with a typical capacity of 3,000 to 5,000 kg.
Steel ropes, pulleys, and counterweights move the cabin, the same principle as a passenger lift. Traction systems run faster and handle mid- to high-rise buildings, with capacity from 3,000 kg up to 10,000 kg — the standard choice for commercial towers and dealerships.
Air pressure inside a sealed cylinder lifts the platform. No deep pit or large machine room is needed, which makes pneumatic lifts a fit for villas with limited structural room.
Reach a basement or underground garage without giving up valuable garden or driveway space.
Create 6 to 40+ additional parking spaces without the need for a traditional access ramp.
Enjoy drive-in, park-beside-your-unit convenience for premium and luxury residential towers.
Provide faster and more comfortable parking access for employees, clients and visitors.
Move guest vehicles between levels while supporting horizontal transport for laundry and housekeeping trolleys.
Display and store vehicles across multiple floors while making better use of valuable showroom space.
Speak with our team about your space, parking requirements and project needs.
| Capacity | Cabin Size (W×D×H) | Typical Use |
|---|---|---|
| 3,000 kg | ~2,500 × 5,700 × 2,500 mm | Villas, sedans, small SUVs |
| 5,000 kg | ~3,400 × 5,700 × 2,500 mm | Larger SUVs, mixed-use buildings |
| Up to 10,000 kg | Custom-engineered | Commercial towers, dealerships |
Nominal speed typically runs 0.2–0.6 m/s, with pit depth from 1,250 mm to 1,800 mm depending on lift type. Exact dimensions are confirmed after a structural site survey.
Doors can be configured as center opening, side opening, split opening, or telescoping, depending on vehicle size and how many entry points your building needs. Cabins can have one, two, or opposite-side accesses to match your traffic flow.
Operation is available by pushbutton control, remote control, smart card, or smartphone app, with light barriers to guide vehicle positioning and prevent contact with the doors during entry and exit. For buildings with two stopping points, fully automatic travel starts the moment the vehicle is positioned correctly, no button press needed.
All installations meet EN81-20 and the applicable Lift Directive, plus approval from Dubai Civil Defence or the equivalent authority in your emirate.
Pricing depends on lift type, capacity, travel height, door configuration, and site conditions. As a guide:
| Type | Typical Price Range |
|---|---|
| Hydraulic (villa/residential) | AED 75,000 – 185,000 |
| Pneumatic | AED 75,000 – 185,000 |
| Traction (mid/high-rise) | AED 80,000 – 330,000 |
| Custom / high-capacity | AED 85,000 – 550,000+ |
Pit excavation, structural reinforcement, and Civil Defence approvals typically add 15–25% on top of equipment cost. Retrofitting an existing villa costs more than planning the shaft into a new build from the foundation stage.
We handle the full process from structural assessment through Civil Defence approval and handover. A residential retrofit usually takes 6 to 10 weeks; new-build installations run alongside construction. After handover, our maintenance plans cover hydraulic seals, cable tension, safety sensors, and emergency systems on a scheduled basis, keeping your elevator compliant and running.
A single-car shaft typically needs around 2.8m width by 5.5–6.3m depth, with less required for pneumatic systems that skip the pit.
6 to 10 weeks for a residential retrofit from approval to handover; new builds run in parallel with construction.
Yes. Every installation includes obstruction sensors, overload protection, interlocking doors, and emergency stop systems, built to EN81-20 standards.
Yes, every car elevator needs approval from Dubai Civil Defence or the equivalent authority in your emirate before installation and before handover.
Yes, after a structural assessment confirms the foundation and walls can support a new shaft and pit.
EME Elevators covers design, supply, installation, and maintenance for car elevators across Dubai, Abu Dhabi, Sharjah, Ajman, Al Ain, Ras Al Khaimah, Fujairah, and Umm Al Quwain. Send us your building layout and vehicle requirements, and we’ll come back with a site assessment and a fixed quote.
