Reversing out of a tight villa driveway onto a busy Dubai road is a risk you take every single day. EME Elevators supplies and installs car turntables, rotating platforms that turn your vehicle for you, for villas, showrooms and parking structures across Dubai, Abu Dhabi and the wider UAE.
Get a Free Obligation Quote
A car turntable is a motorised circular platform, installed flush with the ground or as a raised unit, that rotates a vehicle 360 degrees. Drive on, activate the platform by remote control or wall switch, and the car turns to face the direction you need, so you always drive in forward and drive out forward.
Most turntables use a friction drive system, where motorised rollers press against the underside of the platform to rotate it. Larger units often run on four to six motors working together, so the turntable keeps operating even if one motor needs servicing.
The most common use across UAE villas, removing the need to reverse onto the street and reducing tyre scrub from tight three-point turns in a compact driveway.

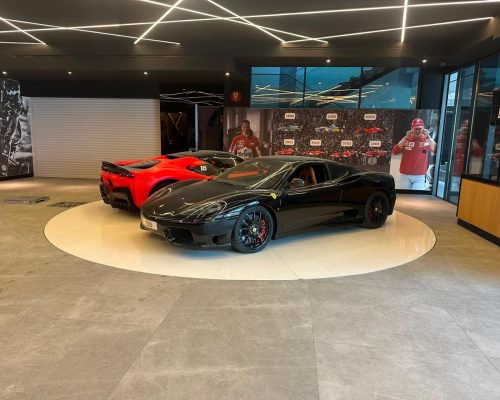

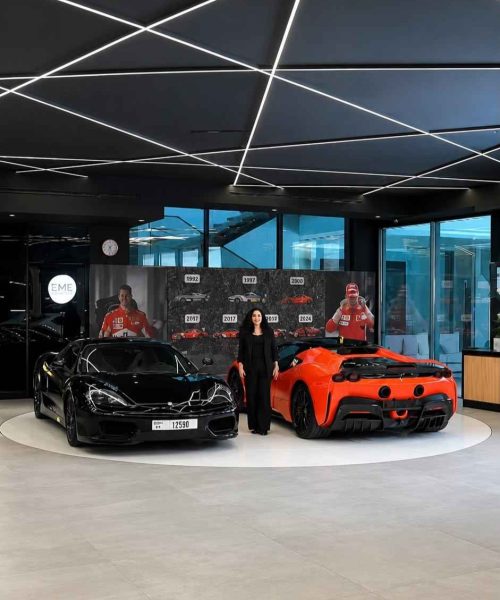

A turntable lets a vehicle rotate slowly under showroom lighting, so it can be viewed and photographed from every angle without repositioning cameras or lights.
In multi-level or basement parking, a turntable removes the need for a wide turning radius, which means tighter bay spacing and more usable parking area on the same footprint.
Heavy-duty turntables handle buses, trucks, and emergency vehicles, cutting the yard space needed for large turning circles and speeding up vehicle deployment.
| Flush-Mounted (In-Ground) | Surface-Mounted | |
|---|---|---|
| Installation | Sits level with the surrounding floor, requires a pit | Sits on top of the existing surface, minimal civil work |
| Look | Cleanest, most seamless finish | Slightly raised edge, faster to install |
| Best for | New builds, luxury villas, showrooms | Retrofits, existing driveways, rental properties |
| Structural work | Higher, requires excavation | Lower, ramp-edged unit |
Remote control, wall switch, or app-based rotation control
Friction or hydraulic drive systems, matched to load and diameter
Clockwise and counter-clockwise rotation
Custom surface finishes, including tiles, pavers, or hardwood to match existing flooring
IP-rated waterproof motors for reliable outdoor use in UAE weather
Variable frequency drive for smooth, steady, low-noise rotation
Emergency stop switch, accessible from the platform and control point
Obstacle sensors that halt rotation if something enters the platform's path
Load sensors to prevent operation beyond rated capacity
Protective edge barriers on raised units
Backup power options to prevent the platform stopping mid-rotation
| Configuration | Diameter | Load Capacity |
|---|---|---|
| Residential turntable | 3m – 5.5m | Up to 3.5 tonnes |
| Showroom / commercial turntable | 5m – 8m | Up to 5 tonnes |
| Heavy-duty / fleet turntable | Up to 30m | Up to 20+ tonnes |
Exact sizing depends on the largest vehicle the platform needs to accommodate and the available driveway or bay space.
| Configuration | Estimated Project Cost (AED) |
|---|---|
| Residential surface-mounted | 35,000 – 60,000 |
| Residential flush-mounted (in-ground) | 55,000 – 100,000 |
| Showroom / commercial turntable | 100,000 – 250,000+ |
Final pricing depends on diameter, load capacity, drive system, and whether the site needs civil work for a flush-mounted pit. EME Elevators confirms exact pricing after a free site assessment.
Our team reviews driveway or bay space, vehicle size, and whether a flush-mounted or surface-mounted unit fits best.
Diameter, drive system, and finish are matched to your vehicle and site requirements.
For flush-mounted installations, pit excavation and preparation are carried out for the in-ground platform.
The platform, motor, and control system are installed, connected, and configured for reliable operation.
Full load and rotation testing is completed before handover, followed by a walkthrough of remote or app control.
A car turntable’s drive motors, rollers, and control system need periodic checks to keep rotation smooth and prevent uneven wear, especially for units used daily. EME Elevators offers maintenance contracts and 24/7 emergency support for turntables we install, across Dubai, Abu Dhabi, and the wider UAE.
Requirements vary by emirate and community. Our team can advise on what's needed for your specific site during the assessment.
Yes. Residential turntables are typically rated up to 3.5 tonnes, which covers most SUVs and larger sedans. Heavier vehicles need a larger diameter and higher-capacity platform.
Flush-mounted units give the cleanest look but need a pit and more civil work. Surface-mounted units install faster with less disruption, which often suits retrofits better.
With scheduled maintenance, a well-installed turntable typically runs reliably for many years, since the main wear points are the drive motors and rollers rather than the platform itself.
Yes, provided the unit uses IP-rated waterproof motors and is specified for outdoor use, which EME Elevators accounts for at the design stage.
Yes, EME Elevators supplies and installs car turntables across the UAE, including Abu Dhabi, Ajman, Sharjah, Al Ain, Ras Al Khaimah, Fujairah, and Umm Al Quwain.
Share your driveway or bay dimensions, vehicle type, and preferred finish, and our engineering team will confirm the right turntable and pricing after a free site assessment.
