Hospital Lifts Built for the UAE's Busiest Medical Facilities
Custom-engineered elevators for beds, stretchers, medical staff and equipment. Installed and maintained across all 7 emirates.
Get a Free Obligation Quote
WHAT IS A HOSPITAL LIFT?
Two Very Different Things Share This Name
“Hospital lift” means two different pieces of equipment, and mixing them up during procurement wastes time.
Type 01
Patient Transfer Lifts (Not What We Install)
These are portable devices that move one patient at a time, from a bed to a chair or into a bath. A Hoyer Lift is the best known example. This category includes four main types:
- Manual or hydraulic lifts — operated by hand pump, no power needed
- Electric or battery lifts — push-button controls for non-weight-bearing patients
- Sit-to-stand lifts — assist patients with partial leg strength to rise
- Ceiling or overhead lifts — track-mounted, no floor space used
These are patient care equipment, regulated under FDA guidance on patient lift devices. EME Elevators does not manufacture or install these.
Type 02

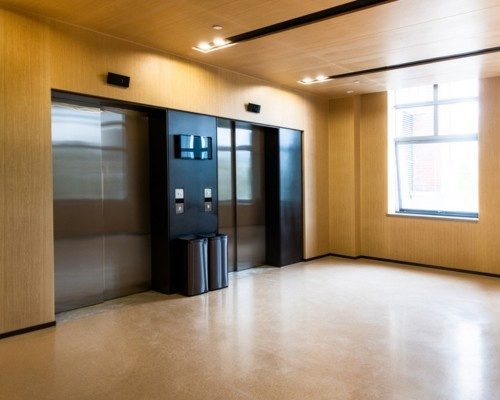

Hospital Building Elevators (What We Install)
These are structural lifts built into the hospital itself. Extra-deep, extra-wide cabins carry a full bed, a stretcher, monitoring equipment and attending staff between floors. They run on priority control modes, hold a smooth leveling stop for trauma patients, and switch to emergency power backup automatically if the building loses electricity.
TYPES OF HOSPITAL ELEVATORS WE INSTALL
The Right Lift Equipment for Every Department
Bed & Stretcher Elevators
Deep, wide cabins sized for a full hospital bed plus staff, without repositioning the patient mid-transfer.
Hydraulic Hospital Lifts
Fluid-driven pistons instead of cables. A gentler, low-vibration ride for critical or post-surgical patients. Best suited to low and mid-rise buildings.
Traction Hospital Elevators
Steel rope and motorised sheave system. Faster travel for taller hospital towers with heavy daily floor traffic.
Pneumatic (Air) Lifts
Sometimes called an air lift, this vacuum-driven system needs no shaft pit or machine room. Useful for retrofits in existing hospital buildings with limited construction space.
Goods & Service Lifts
Move sterile supplies, pharmacy stock and food trolleys away from patient traffic, protecting infection control zones.
What Size Hospital Lift Do You Need?
Hospital lift size depends on what the cabin carries, not a fixed industry number.
| Measurement | Standard Range |
|---|---|
| Cabin depth | ~8 ft (2.4m) |
| Cabin width | ~5.2 ft (1.6m) |
| Ceiling clearance | 7.5 ft+ (2.3m) for IV poles and monitors |
| Door width | Wide enough for angled bed entry |
| Weight capacity | From 1,600 kg upward |
A hospital stretcher lift size this large lets a trolley, an attending nurse and equipment fit without the bed touching the cabin walls. EME Elevators measures each facility’s corridor and doorway layout before confirming final hospital bed lift size, so the lift fits the building, not the other way round.
HOW A HOSPITAL LIFT WORKS
Understanding the Hospital Bed Lifting Mechanism
The lifting mechanism depends on which system is installed.
Hydraulic Systems
Hydraulic systems push the cabin upward using a fluid-filled cylinder beneath the shaft. This gives a controlled, low-vibration ride, ideal for patients on ventilators or IV lines.
Traction Systems
Traction systems use steel ropes over a motorised sheave at the top of the shaft, allowing faster travel across taller buildings.
Priority Operation
How staff use a hospital lift: a key-locked priority mode lets emergency staff override waiting calls and send the cabin directly to surgery, ICU or the emergency floor without stopping en route.
Every hospital building is different, so EME Elevators provides a written quote after a site visit rather than a fixed online price.
HOW A HOSPITAL LIFT WORKS
What Affects Hospital Lift Cost
Hospital Lift Installation Across All 7 Emirates
https://emeelevators.com/services/elevator-maintenance/EME Elevators installs and services hospital lifts in Abu Dhabi, Dubai, Sharjah, Ajman, Umm Al Quwain, Ras Al Khaimah and Fujairah.
New hospital tower, clinic retrofit, or private medical centre, one team handles installation and supply plus ongoing elevator maintenance under a single contract.
Dubai
Abu Dhabi
Sharjah
Ajman
Umm Al Quwain
Ras Al Khaimah
Fujairah

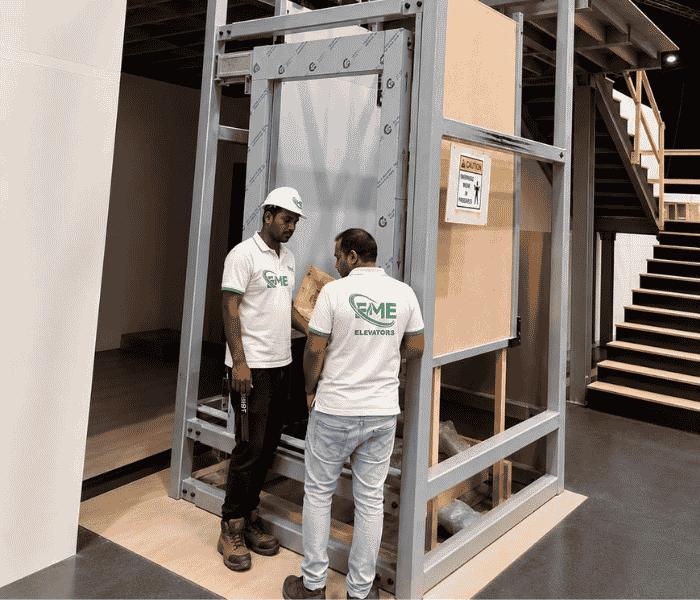

WHY EME ELEVATORS
Custom cabin sizing, no forced-fit installs
Hydraulic, traction and pneumatic options matched to building height
Priority control systems for emergency floors
24/7 maintenance contracts across the UAE
Frequently Asked Questions
No. A Hoyer Lift is a portable patient transfer device for one patient in one room. A hospital lift, as EME Elevators builds it, is a structural elevator that moves beds and staff between floors.
It refers to a pneumatic vacuum elevator, a shaft-pit-free lift system. It suits hospital retrofits with limited construction space.
No. A lift chair is a reclining medical chair, not an elevator. EME Elevators does not supply lift chairs.
Around 8 ft deep by 5.2 ft wide, though EME Elevators customises this to each building's layout.
Hydraulic suits low to mid-rise buildings with a smoother ride. Traction suits taller towers needing speed. Pneumatic suits retrofits with limited shaft space.
Yes, all 7 emirates, from Abu Dhabi to Fujairah.
Your Hospital Can't Afford a Slow Lift
Get a free site assessment and a written quote in 48 hours.
